S4-BLACKOUT P9427 (1940)

The ultimate pilot watch
(100 builds)

With engraved disc manufactured from the original Rolls-Royce Merlin engine casing of Spitfire P9427 recovered from Poole Bay, Dorset

The S4 Blackout watch conveys the simplicity of the classic avionic dials found in the Spitfire cockpit. Housed in a precision billet machined vapour blasted case and contrasting black ZW DSL lugs, is a distinct black dial with period numerals and indexes, clearly defined avionics style hands, and a standout red sweep seconds hand. The classic dial is framed by a simple matt black bezel ring and the hands and dial are highlighted with SuperLuminova X1 luminous pigment. The dial also references the date of Sergeant Pilot Zygmunt Klein’s dogfight above The Needles (28^th November 1940), and the longitude-latitude coordinates of Poole Bay where Spitfire P9427 was discovered. The rear of the watch showcases a disc of the original metal that we recast and machined from the original Rolls-Royce Merlin engine of P9427. The precious Merlin disc is protected by a sapphire crystal window and is laser engraved with a detail of the plane and map of Poole Bay, where it last saw enemy combat in 1940.

The watch is powered by the stellar Swiss ETA 2824 automatic movement thus ensuring it never misses a beat. Hand adjustment is by a brush polished locking screw crown modelled on the joystick gun platform fire button, a feature once so familiar to those brave young RAF pilots during the Battle of Britain. The watch is fitted with a ZW handmade vintage leather strap with contrasting stitching and an engraved black PVD buckle.

Due to unprecedented interest in the Spitfire S4-P9427 Blackout, delivery is now expected in late April. This is to allow sufficient time for building and quality control, and to fulfill all existing orders to the high standard Zero West prides itself on.

£2,500.00 £2,083.33

S4-BLACKOUT P9427 (1940) Zero West Watches

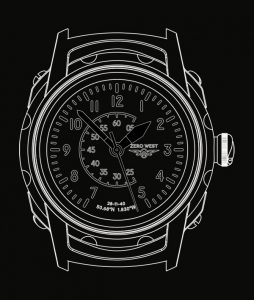

Technical

Design Attributes

Latitude and Longitude references Poole Bay, where P9427 was discovered
Date code references Klein’s dogfight above The Needles
Dial design based on a airspeed indicator
Crown modelled on the joystick gun platform fire button
Merlin engine smelt from P9427, laser engraved

Case

44mm diameter, black PVD, 316L stainless steel billet, with eight machined flutes
Match machined, black PVD, 316L stainless steel DSL lugs
Black PVD, 316L stainless back with exhibition sapphire crystal window displaying laser engraved P9427 merlin engine disc from the plane

Main Crown

Matt silver finished screw crown, modelled on the joystick gun platform fire button. 316L stainless steel with triple seal technology

Crystals

Front: custom double domed sapphire glass with blue AR coating on the internal surface
Rear: flat sapphire glass

Movement

ETA 2824
28,800vph
25 jewels
Self-winding ball bearing rotor
Power reserve ~38 hours
Water resistance: 10ATM (100m) 100% tested

Dial

Black enamel over brass substrate with over printed vintage dial based on airspeed indicator, numerals and aviation indicators highlighted in SuperLuminova X1 luminous pigmen

Hands

White avionic style hands coated in SuperLuminova X1 luminous pigment. Vintage red sweep hand

Dimensions

44mm diameter
14.1mm thick
22mm lug width
49.6mm lug to lug pin spacing

Strap

22/22mm Custom handmade leather strap (half stitched)
Single wide sliding keeper loop
Matt black 316L stainless steel buckle with engraved ZW logo
180mm – 220mm wrist circumference

THE STORY BEHIND THE WATCH

THE PILOT

SPITFIRE P9427

DOGFIGHT

THE PILOT

At the tender age of 22, Polish Sergeant Pilot, ‘Ziggy’ Klein fought with skill and courage in the Battle of Britain, initially for 234 Squadron based out of Middle Wallop before transferring to 152 Squadron flying out of RAF Warmwell in Dorset.

He learned to fly at the age of 19 whilst serving in the 4^th Air Training Squadron and the Pilot School in Grudziadz, Poland. It was clear he was a skilled pilot and as the war rapidly progressed and Poland was aggressively occupied, his squadron made its way to France where they became attached to the Royal Air Force. Having reached Britain’s shores by February 1940, Ziggy received further combat training before being assigned to 234 Squadron on 6^th August 1940, and thrown in to what would be forever marked in history as, ‘The Battle of Britain’.

SPITFIRE P9427

Spitfire P9427 was built at the Supermarine Aviation Works in Eastleigh, Southampton and was first flown on the 19^th March 1940. The Mk1a Spitfire had a Merlin III engine powering it to a magnificent maximum speed of 367 mph, and combat range of 248 miles on internal fuel. Armed with eight 0.303 Browning machine guns firing 350 rounds each, this formidable engineering masterpiece was designed for attack and ultimate manoeuvrability in the air. It was designed to be a master of the skies and combat the Luftwaffe.

P9427 saw initial action in the historic 609 Squadron, before joining the ‘Battle of Britain’ with the 74 and 41 Squadrons. By 2^nd October 1940, P9427 found a home at 152 Squadron; a few days later, man was joined with machine when Sergeant Pilot ‘Ziggy’ Klein transferred to RAF Warmwell.

DOGFIGHT

On the afternoon of Thursday 28^th November 1940 152 Squadron was called to action with 609 Squadron, and intercepted twenty Messerschmitt Bf 109s flying between the Isle of Wight and Poole Bay at 22 000ft. On contact the Squadron immediately broke formation and dogfights quickly exploded into being as fighter planes combined fire power with manoeuvrability to gain air superiority. Attacking in pairs, Klein quickly descended into a dive above The Needles following a lone Messerschmitt at top speed.

The chase was on and with sights set on defending Britain, Klein teamed up with Flight Lieutenant John Dundas of 609 Squadron as their Browning machine gun bullets ripped into the enemy fuselage, the plane plummeting into the sea. It was only later, through the German Press that RAF Fighter Command realised that the Messerschmitt was piloted by legendary Luftwaffe fighter ace, Major Helmut Wick.

Sadly, the elation of this success was short-lived for Klein. Taken down by a spray of bullets in this maelstrom in the air, Spitfire P9427 spiralled out of control to plunge into the depths of Poole Bay.

What we do know is that Sergeant ‘Ziggy’ Klein, like many other young pilots of The Battle of Britain, gave the best of themselves for our freedom.

Sgt Pilot Zygmunt ‘Ziggy’ Klein: 28 Combat Sorties. 65 Operational Flights

TIME: 28/11/1940 – PLACE: 50.68°N – 1.830°W

RECASTING HISTORY FOR THE S4-P9427

FROM DISCOVERY TO CREATION

DISCOVERY

Discovered by a fishing boat in Poole Bay off the Dorset coast, remains of Spitfire P9427 were retrieved from the depths. Half a century of salt water corrosion had left identification using serial numbers of the engine components, redundant. However the spinner and two propeller blades had been buried in the muddy seabed and were salvaged intact. It was clear from the blade length and pattern, and the shape of the spinner, that this precious find was an early Mk1 Battle of Britain Spitfire. Extensive research through official RAF records and numerous accounts of dogfights and planes lost in Poole Bay during and after the Battle of Britain, left no doubt that this was Spitfire P9427, flown by Sergeant Pilot Ziggy Klein of 152 Squadron, lost in combat on the 28th November 1940.

OPPORTUNITY

‘When we were presented with the unique opportunity to purchase the aluminium Merlin engine casing from this iconic plane, it was a dream come reality. We immediately brainstormed numerous ideas and discussed how we would turn this historic material into something tangible to be part of our Zero West heritage watch collection. It occurred to us that if we smelt the engine casing into machinable bars, we could produce a very limited number of watch back inserts for a truly special piece of aviation history.’

PRODUCTION

‘We made a firm decision to sand cast the alloy into round bars and then re-machine them to retain the integrity of Zero West, which is to billet machine our watch parts, rather than forge or cast them. During a local promotional photo shoot at Foundry Motorcycles, Chichester, we noticed that Tom, the owner, cast his own aluminium alloy parts, so we discussed the possibility of him smelting our bars, which he did.

The rough engine casting smelt material had corroded steel bolts, bearing shells and lubrication points which needed removing before it could be added to the crucible, so we got to work with the angle grinder and plenty of brute force to remove any non-aluminium inclusions. When we considered the last time this material had been cast was to make the Spitfire engine crankcase nearly 80 years ago, re-melting the aluminium was a moment that was both exhilarating and poignant. We were nervous about sand casting our precious RR-50 alloy but thanks to the skill of Tom, the size of the parts and their simple form, the results were impressive.

After pouring, the cast parts were carefully knocked out of their sand box moulds, quenched and cleaned, revealing new looking bars of precious Spitfire RR-50 alloy. To check their integrity and machinability, one of the bars was set up in a lathe, faced and turned. The alloy machined beautifully and revealed a perfect inclusion free finish – a huge relief!

The precious cast bars were delivered to our production machinists who yielded a limited quantity of precious P9427 engine RR-50 inserts to be built into our design. These parts were lightly sand blasted to remove any machining marks and the limited edition commemorative Spitfire graphic, engraved for a perfect finish. The results speak for themselves and we owe a debt of gratitude to the close team of skilled professionals who have made this possible.’
